Last updated: October 7, 2026. A uPVC window is not just a plastic frame with a piece of glass inside it. It is a complete system made from several components that work together: the uPVC profile, internal reinforcement, glass, gaskets, glazing beads, hardware, drainage paths, seals, and the fabricated frame and sash.
Understanding these parts helps a homeowner compare quotations properly and avoid judging a window only by profile brand, colour, or price.

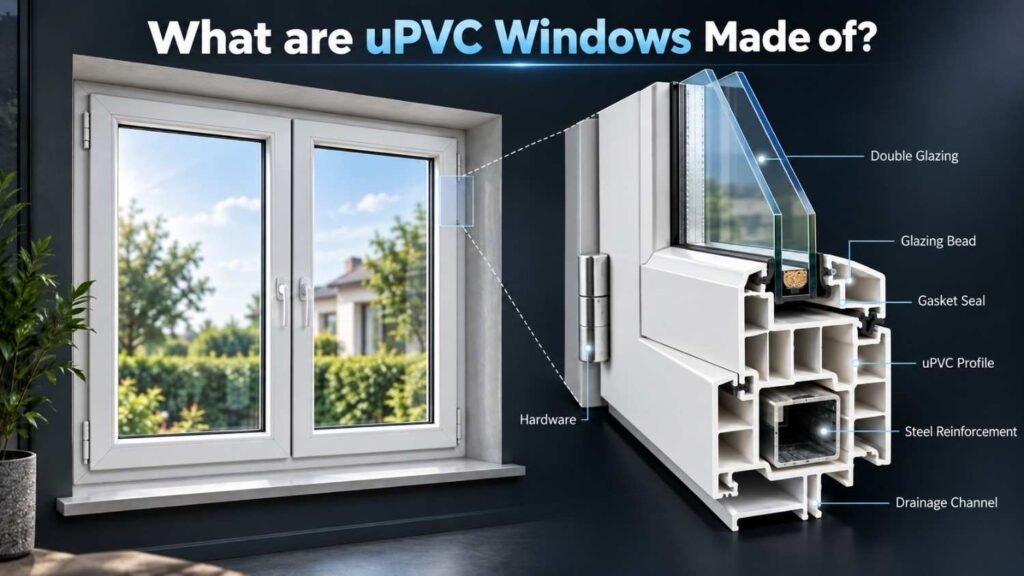

What Is a uPVC Window Made Of?
A typical uPVC window is built from these main components:
- uPVC profile sections
- frame and sash
- internal reinforcement where required
- single, double, or other suitable glazing
- gaskets and weather seals
- glazing beads
- hardware such as handles, hinges, locks, rollers, and stays
- drainage and pressure-equalisation paths
- mechanical fixings and installation sealants
The performance of the finished window depends on how these parts are selected, fabricated, fitted, and adjusted as one system.
Key Takeaways
- The visible white or coloured profile is only one part of a uPVC window.
- Internal reinforcement may be required depending on window size, opening style, glass weight, and profile system.
- Glass has a major effect on thermal comfort, safety, privacy, solar control, and noise reduction.
- Gaskets and seals help control air and water leakage around the sash and glass.
- Hardware controls how the window opens, closes, locks, slides, or tilts.
- Drainage paths help manage incidental water inside the window system.
- Fabrication and installation quality can matter as much as the profile brand itself.
1. The uPVC Profile
uPVC stands for unplasticized polyvinyl chloride. In window construction, it is extruded into shaped profile sections that form the frame, sash, mullions, transoms, and other structural parts of the window.
Unlike flexible PVC products, uPVC window profiles are rigid and designed for building applications.
A typical profile contains internal chambers. These chambers can contribute to:
- structural geometry
- thermal separation
- drainage pathways
- reinforcement cavities
- hardware fixing zones
The number of chambers alone should not be used as a quality score. Profile wall design, reinforcement compatibility, seals, glazing capacity, fabrication quality, and installation also matter.
2. The Outer Frame
The outer frame is the fixed part attached to the building opening.
Its job is to:
- hold the complete window system in position
- receive fixed or opening sections
- transfer loads to the building opening
- support seals, drainage, and hardware interfaces
- provide the perimeter that is fixed and sealed to the wall
A premium profile cannot compensate for an outer frame that is badly measured, poorly fabricated, or weakly fixed to the building.
3. The Sash
The sash is the moving framed section that holds the glass in an openable window.
Depending on the design, the sash may:
- swing inward or outward
- tilt
- slide horizontally
- form part of a tilt-and-turn system
Fixed windows do not need an operable sash in the same way because the glass is held within a fixed configuration.
For opening configurations, see types of uPVC windows.
4. Internal Reinforcement
Many uPVC window systems use metal reinforcement inside designated profile chambers where the design requires additional structural support.
Reinforcement requirements can depend on:
- window width and height
- sash size
- opening type
- glass weight
- hardware loads
- wind exposure
- profile-system requirements
Galvanized steel is commonly used in many systems, although the exact reinforcement design depends on the profile manufacturer and window specification.
The important relationship is:
opening size + sash load + glass weight + hardware requirement → reinforcement requirement
5. The Glass Unit
The glass is often the largest visible part of the window and can strongly influence comfort and performance.
Depending on the project, the window may use:
- single glazing
- double glazing
- toughened safety glass
- laminated glass
- tinted glass
- privacy glass
- Low-E or solar-control glass
The correct choice depends on the room, orientation, safety requirement, noise conditions, privacy needs, and budget.
6. What Is Inside a Double-Glazed Unit?
A double-glazed unit is normally made from two panes of glass separated by a spacer system and sealed around the perimeter to create an enclosed cavity.
The cavity and glass specification influence thermal and acoustic performance.
For a detailed explanation, see what uPVC double glazing is and how it works.
7. Glazing Beads
Glazing beads are profile sections used to retain the glass within the frame or sash.
They help:
- hold the glazing securely in position
- maintain pressure against the glazing seals
- allow the glass to be fitted or replaced according to the system design
The bead must match the selected profile and glazing thickness.
8. Gaskets and Weather Seals
Gaskets are flexible sealing components positioned around the sash, frame, or glass depending on the profile design.
They help control:
- air leakage
- water penetration
- dust entry
- glass contact with the rigid frame
- compression between opening components
Damaged, badly fitted, or poorly compressed gaskets can reduce window performance even when the frame itself is in good condition.
9. Hardware
Hardware is the mechanical system that allows a window to open, close, lock, slide, or tilt.
Depending on the window style, hardware can include:
- handles
- hinges
- stays
- locks
- multipoint locking mechanisms
- rollers
- tracks
- stoppers
- tilt-and-turn mechanisms
Hardware should be matched to sash dimensions, glass weight, opening style, frequency of use, and security requirements.
10. Handles
The handle is the user-facing control for many openable uPVC windows.
Depending on the system, the handle may operate:
- a simple latch
- a multipoint locking mechanism
- a tilt-and-turn gear system
The feel of a handle is not enough to judge overall hardware quality. Internal gearing, locking points, keeps, fixing, and adjustment also matter.
11. Hinges and Stays
Hinges connect the sash to the frame and control its movement.
Friction stays are commonly used in certain casement configurations to support the sash and control how far it opens.
Incorrect hinge selection or poor adjustment can cause:
- sash rubbing
- difficult closing
- uneven gaps
- poor seal compression
12. Rollers and Tracks in Sliding Windows
Sliding windows use rollers and tracks instead of conventional side hinges.
The system must support the moving panel while allowing smooth operation.
Important factors include:
- roller quality
- panel weight
- track alignment
- interlocking sections
- stoppers
- locking mechanism
A sliding window that looks simple can still depend on several precisely aligned mechanical components.
13. Mullions and Transoms
Mullions and transoms divide larger windows into separate sections.
They may separate:
- fixed and openable panels
- multiple glazed sections
- horizontal or vertical window zones
These structural profile members also influence the appearance, opening layout, and glass sizes.
14. Drainage Channels
Many uPVC window systems are designed with internal drainage paths to manage incidental water that enters designated parts of the frame.
Drainage openings should remain clear so water can move toward the exterior rather than being trapped inside the system.
They can be compromised by:
- blocked drainage slots
- incorrect fabrication
- excess sealant
- dirt or construction debris
- poor exterior sill detailing
15. Sealed Joints and Fabrication Welds
uPVC profile sections are cut and joined during fabrication to form the finished frame and sash.
Fabrication accuracy affects:
- squareness
- corner quality
- glass fit
- hardware alignment
- seal compression
- overall operation
This is one reason two windows made from a similar profile can perform differently when produced by different fabricators.
16. Installation Fixings
The finished window must be connected securely to the building.
Depending on the wall and installation method, the installer may use suitable frame fixings, screws, anchors, packers, and other approved fixing components.
The exact method should suit the wall construction and window system.
For the wider client-side process, see the uPVC window installation guide for new homes or renovations.
17. Perimeter Sealant
The joint between the window frame and the building opening needs to be completed correctly.
Perimeter sealing helps control:
- air leakage
- rainwater penetration
- dust
- unfinished gaps
Sealant should not be treated as a substitute for correct fixing, accurate measurements, or proper opening preparation.
18. Decorative Finishes and Laminates
Not all uPVC windows are plain white.
Depending on the selected system, profiles may be available with:
- solid colours
- wood-effect laminates
- different interior and exterior finishes
Decorative finishes affect appearance but should still be evaluated together with the underlying profile, fabrication, glass, hardware, and installation.
19. Optional Grids and G-Bars
Some window designs include decorative grid elements or G-Bars to create a divided-light appearance.
These are primarily visual design features and should not be confused with structural reinforcement.
20. How All the Components Work Together
A uPVC window performs as a system rather than as a collection of independent parts.
| Component | Main Role |
|---|---|
| uPVC profile | Forms the frame, sash, and structural geometry |
| Reinforcement | Adds structural support where required |
| Glass | Provides visibility and influences thermal, acoustic, safety, and solar performance |
| Gaskets | Help control air and water leakage |
| Glazing beads | Retain the glass in the profile system |
| Hardware | Controls movement, locking, and operation |
| Drainage paths | Manage incidental water within the system |
| Installation fixings | Secure the window to the building opening |
| Perimeter seals | Help complete the frame-to-wall joint |
Which Components Matter Most When Comparing Quotes?
Instead of comparing only a single rate, ask each supplier to identify:
- profile brand and series
- reinforcement specification
- glass type and thickness
- hardware brand or system
- opening configuration
- gasket arrangement
- colour or laminate
- installation scope
- sealing and finishing scope
This makes quotations easier to compare on a like-for-like basis.
For a broader buying checklist, see how to choose uPVC windows for your home.
Does a Better Profile Automatically Mean a Better Window?
No. The profile is important, but the finished result also depends on glass, reinforcement, hardware, fabrication, installation, and adjustment.
A useful way to think about it is:
profile quality × component compatibility × fabrication quality × installation quality = finished window performance
Frequently Asked Questions
What is the main material in a uPVC window frame?
The main frame and sash sections are made from rigid uPVC profile extrusions designed for building applications.
Do all uPVC windows contain steel reinforcement?
Not necessarily in every section or every configuration. Reinforcement requirements depend on the profile system, dimensions, opening type, glass weight, and structural requirements.
What holds the glass inside a uPVC window?
The glass is typically supported and retained by the profile system, glazing packers, seals, and glazing beads designed for the selected glass thickness.
What are the black rubber parts around a uPVC window?
They are usually gaskets or weather seals. They help control air and water leakage and provide sealing around the sash or glazing.
What is inside a double-glazed uPVC window?
A double-glazed unit normally contains two panes of glass separated by a spacer system and sealed around the perimeter to form an enclosed cavity.
What parts make a uPVC window open and close?
The hardware system does this. Depending on the style, it may include hinges, friction stays, handles, locks, rollers, tracks, or tilt-and-turn mechanisms.
Why do uPVC windows have drainage holes?
They are part of the drainage system and help route incidental water toward the exterior. They should not be blocked during finishing or maintenance.
Can individual parts of a uPVC window be replaced?
Some hardware, handles, gaskets, glazing units, and other components may be replaceable, depending on the profile system, condition, and availability of compatible parts.
Final Thoughts
A uPVC window is a complete engineered assembly, not simply a plastic frame. The profile creates the basic structure, reinforcement adds support where required, glass provides the main glazed barrier, gaskets and beads hold and seal the glazing, hardware controls movement and locking, and drainage and installation details help the system perform correctly.
For homeowners, the most useful buying question is not only “Which profile brand is this?” but:
“What complete window system am I actually getting?”
