Types of uPVC Windows: Styles, Openings & Best Uses

Last updated: October 6, 2026. This guide classifies uPVC windows by opening mechanism, panel configuration, and architectural shape so homeowners can compare like with like.

What Are the Main Types of uPVC Windows?

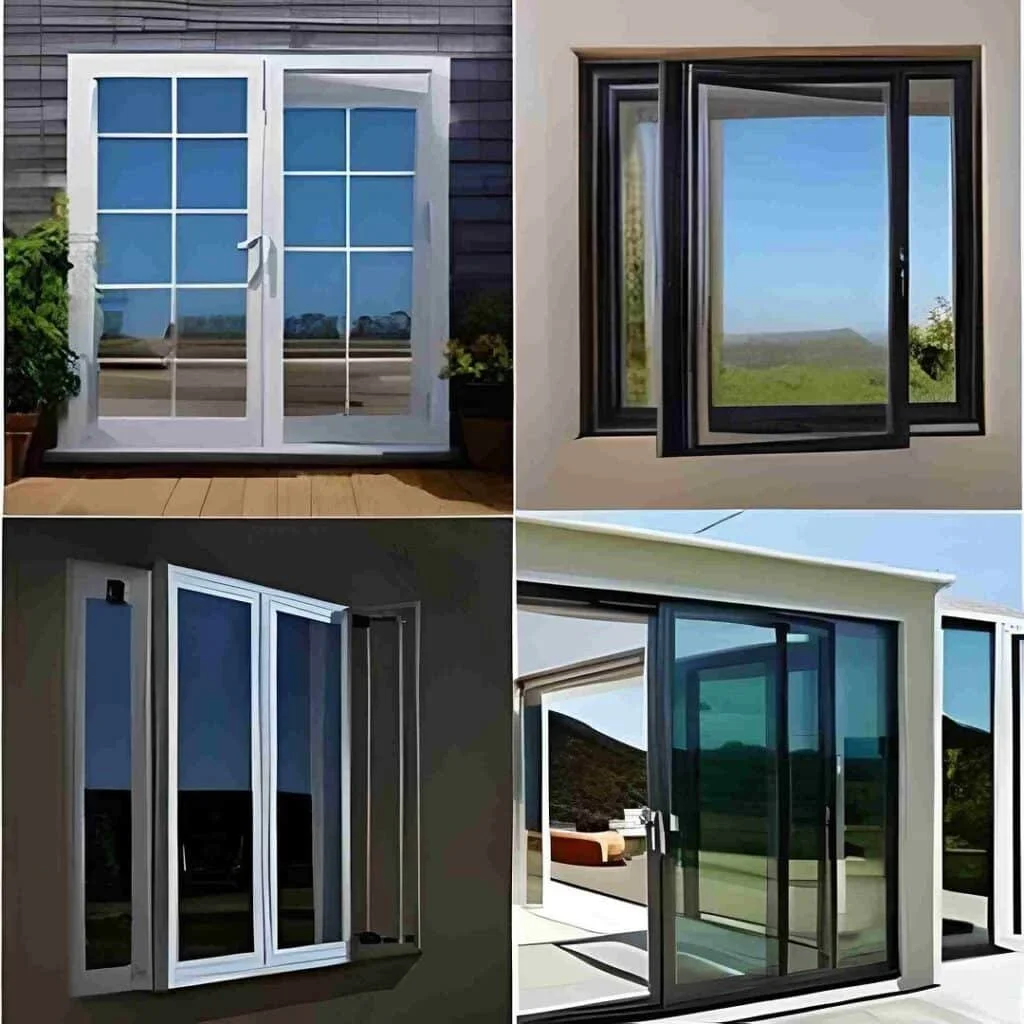

The main uPVC window types are casement/openable, fixed, sliding, and tilt-and-turn. These describe how the window operates. Other terms such as arch, bay, bow, corner, two-panel, three-panel, and four-panel describe shape or layout rather than a separate opening mechanism.

This distinction matters because searchers often use “type,” “style,” “design,” and “opening” interchangeably.

Key Takeaways

• Opening mechanism describes how the sash moves.
• Panel configuration describes how the opening is divided.
• Architectural shape describes the geometry of the window.
• One window can combine all three, for example an arched three-panel window with openable side sashes.
• The best type depends on ventilation, available clearance, view, cleaning access, opening size, hardware, and budget.

uPVC Window Type vs Style vs Configuration

Term	What it describes	Examples
Opening type	How the sash moves	Casement, sliding, tilt-and-turn, fixed
Configuration	How the opening is divided	2-panel, 3-panel, 4-panel, fixed + openable
Shape	Geometry of the frame	Rectangular, arch, corner, custom shape

Main uPVC Opening Mechanisms

Casement or Openable uPVC Windows

A casement or openable window uses a hinged sash. Depending on the system, it may open inward or outward.

A hinged sash can open widely, making casement windows a strong choice where direct ventilation is important.

Casement windows are commonly used in bedrooms, kitchens, living spaces, and other rooms where regular ventilation is important.

Best for

• regular ventilation
• rooms with enough sash clearance
• simple openable designs

Fixed uPVC Windows

A fixed window has glazing but no opening sash.

Because there is no moving sash or opening hardware, fixed windows can provide a clean, uninterrupted glazed area.

Fixed windows are useful for natural light, views, staircases, and as fixed sections within larger multi-panel combinations.

Sliding uPVC Windows

Sliding windows use one or more sashes that move horizontally along tracks. REHAU identifies both single-slider and double-slider arrangements, where one or both sashes move horizontally. REHAU window styles.

Because the sash moves along a horizontal track, sliding windows do not need inward or outward swing clearance and can work well in tighter spaces.

Best for

• balconies
• wide horizontal openings
• areas with limited inward or outward clearance
• modern residential layouts

Tilt-and-Turn uPVC Windows

Tilt-and-turn windows use specialised hardware to provide two operating modes. The sash can tilt inward at the top for controlled ventilation or turn inward from the side for a wider opening. REHAU describes tilt-and-turn systems in the same way. REHAU tilt-and-turn guidance.

The dual-mode hardware gives homeowners two useful options: controlled tilt ventilation and a wider inward-opening position.

Panel Configurations for Wider Openings

Two-Panel Sliding Windows

A two-panel layout divides the opening into two sections, commonly 50/50. Depending on the system, one sash may slide while the other remains fixed, or both may slide.

A two-panel sliding layout keeps operation compact while still allowing part of the opening to be used for ventilation.

Three-Panel uPVC Windows

A three-panel window divides a wider opening into three sections. One common arrangement is approximately 25/50/25, with a wider centre panel and narrower side panels.

The panels can be fixed or operable in different combinations, depending on the profile and hardware system.

How the panels are divided between fixed and openable sections affects ventilation, view, hardware requirements, and overall cost.

Four-Panel uPVC Windows

Four-panel windows suit wider openings and can use equal divisions or other layouts. A common design keeps side sections fixed while allowing centre sections to open, although the exact arrangement depends on the chosen system.

More moving panels generally mean more hardware, alignment, and fabrication work.

Architectural Shapes and Custom Combinations

Arch uPVC Windows

An arch window describes the shape of the frame, not the operating mechanism. The arched section may be fixed, or it may be combined with rectangular openable sections below.

Because an arch is an architectural shape rather than an opening method, it usually requires custom fabrication and becomes part of the design character of the window.

Custom Combination Windows

uPVC systems can combine multiple entities within one frame, for example:

• fixed panel + casement opening
• fixed centre + opening side sashes
• sliding sections + fixed glazing
• arch top + rectangular lower sections
• multi-panel arrangements designed around a specific wall opening

These combinations are useful when a project needs both daylight and ventilation without making every section operable.

Folding uPVC Windows

Folding systems use multiple connected panels that fold to one or both sides. They can create a wider clear opening, but they require more complex hardware and fabrication.

Availability depends on the selected profile and hardware system and should be confirmed before design is finalised.

Architectural Forms That Are Not Separate Opening Mechanisms

Terms such as bay, bow, corner, clerestory, dormer, and skylight describe architectural position or geometry rather than one specific uPVC operating mechanism.

REHAU also distinguishes between window styles, fixed glazing, sliding systems, casement systems, tilt-and-turn systems, and custom shapes/configurations. REHAU uPVC windows and doors overview.

Which uPVC Window Type Gives the Best Ventilation?

Casement and tilt-and-turn windows generally provide more direct opening area than fixed windows. Sliding windows also provide ventilation, but the open area depends on how many sashes can move.

Which uPVC Window Type Is Best for Small Spaces?

Sliding windows are often practical where a swinging sash would interfere with furniture, balconies, walkways, or other nearby elements.

Which Type Is Best for a Large Opening?

Large openings are usually handled with multi-panel configurations. Combining fixed and opening sections can provide ventilation while avoiding unnecessary moving parts.

The right layout depends on opening dimensions, desired view, hardware, reinforcement, and room use.

Which Type Is Usually the Simplest?

A fixed window is mechanically the simplest because it has no opening sash or operating hardware.

Which Types Usually Cost More?

More complex operating systems generally require more hardware, profiles, fabrication, and adjustment. Tilt-and-turn, multi-panel opening systems, and folding configurations can therefore cost more than a simple fixed window of similar overall size.

For the pricing relationship in more detail, see how much uPVC windows cost.

How to Choose the Right uPVC Window Type

Choose the type by matching the opening to the room’s needs:

• ventilation need → casement, tilt-and-turn, or sliding
• no opening required → fixed
• limited swing clearance → sliding
• controlled + full opening → tilt-and-turn
• wide opening → multi-panel combination
• architectural feature → arch or custom shape

This intent-to-configuration mapping is more useful than choosing a style only by appearance.

Frequently Asked Questions

What are the main types of uPVC windows?

The main operating types are casement/openable, fixed, sliding, and tilt-and-turn. These can then be arranged in different panel layouts and architectural shapes.

What is the difference between a window type and a window configuration?

The type usually describes how the sash operates, while the configuration describes how many panels there are and which panels are fixed or moving.

Are sliding uPVC windows good for small spaces?

Yes. They move horizontally and therefore do not need the same swing clearance as a hinged sash.

What is a tilt-and-turn uPVC window?

It is a dual-mode window that can tilt inward at the top for ventilation and turn inward from the side for a wider opening.

Can different uPVC window types be combined?

Yes. Fixed, openable, sliding, and custom-shaped sections can be combined within a larger frame when the selected system supports the design.

Which uPVC window type is best for a wide opening?

A multi-panel configuration is usually the most practical because it can combine fixed and moving sections according to the required view and ventilation.

Final Thoughts

The most useful way to understand uPVC window types is to separate opening mechanism, panel configuration, and architectural shape. Once those entities are separated, choosing the right design becomes much clearer.
